Offshore Large-Dia High-Buoyancy Floating Mooring Buoy | Anti-Salt Spray Carbon/Stainless Steel, IMO MSC.1/Circ.1580 Approved for Oil Rigs/FPSO
主要 な 特質
ブランド名:
Henger
モデル番号:
004
原産地:
中国
認定:
ISO 9001
最低注文数量:
1
価格:
500
供給能力:
50個/週
納期:
15〜30営業日
支払い条件:
L/C、D/A、D/P、T/T
標準パッケージ:
ヌードパッキング
製品概要
Large Diameter Marine Offshore Steel Floating Mooring Buoy Product Description Steel mooring buoys stand as pivotal anchoring infrastructure within port facilities, meticulously engineered to reliably accommodate vessels across a spectrum of tonnages. Their operational framework is defined by ...
製品カスタム属性
ハイライト
大直径の浮遊式固定ボイ
,高強度鋼製の停泊ボイ
,IMOで承認されたオフショア・アンテナボイ
製品名:
アンカーペンダントブイ
材料:
スチール、EVA充填
サイズ:
カスタマイズされたサイズ
保証:
12か月
色:
カスタマイズされた色
ロゴサービス:
カスタマイズ
商標:
ヘンガー
起源:
中国
デザイン:
モジュラー設計
製品説明

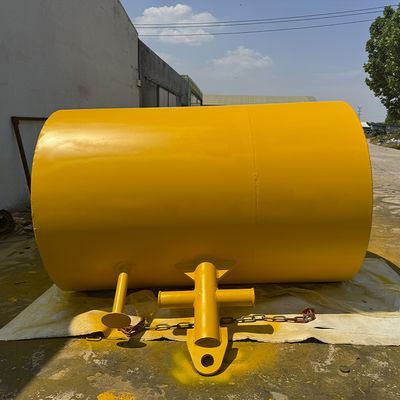

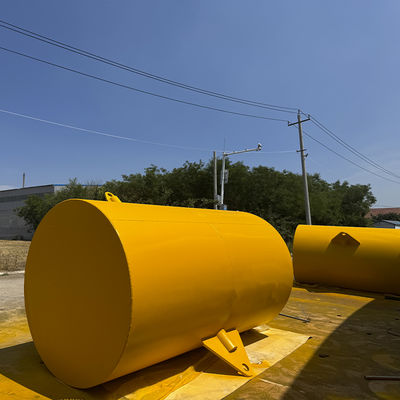

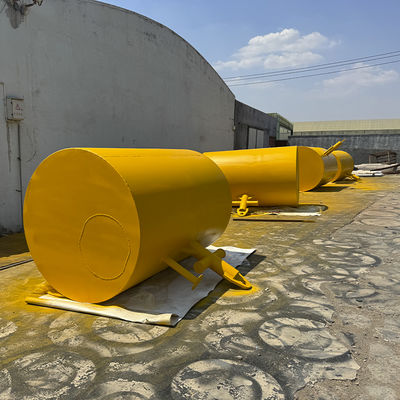

Large Diameter Marine Offshore Steel Floating Mooring Buoy
Steel Mooring Buoy Technical Parameter
| Model | Net Buoyancy | D×H (m) | Suitable for Ship Tonnage (t) |
| HESMB 2.0 | 3 | 2.0×1.74 | <2000 |
| HESMB 2.6 | 6 | 2.6×2.27 | <5000 |
| HESMB 3.6 | 19 | 3.6×2.14 | <10000 |
| HESMB 5.0 | 28.5 | 5.0×3.4 | <12000 |
| HESMB 5.5 | 31.2 | 5.5×3.0 | <100000 |
| HESMB 6.0 | 34.2 | 6.0×3.2 | <150000 |
| HESMB 8.0 | 40.3 | 8.0×2.46 | <250000 |

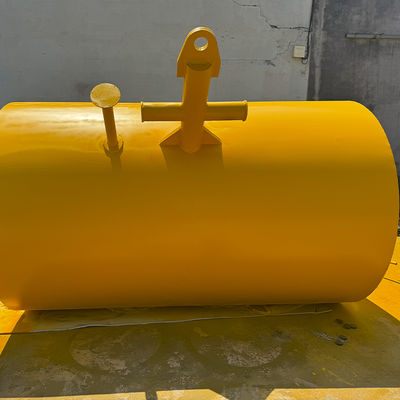

Anchor Pendant Buoy
Anchor pendant buoys come in an extensive range of sizes, offering options such as suitcase-style, modular, non-modular, custom-made, and standard configurations. All units are equipped with removable central steelwork, which is tailored to meet specific customer requirements—typically featuring either a handling crucifix/pad eye arrangement or a through hawse designed for use with anchor wire instead of chain.
Anchor Pendant Buoy Technical Parameters
|
Model
|
Reserve Buoyancy (kg) |
Diameter (mm) |
Float Length (mm) |
Overall Length (mm) |
Weight (kg) |
|
HE-APB1000
|
1000 | 1350 | 1100 | 1900 | 300 |
|
HE-APB2000
|
2000 | 1500 | 1500 | 2600 | 500 |
|
HE-APB3000
|
3000 | 1850 | 1500 | 2600 | 600 |
|
HE-APB4000
|
4000 | 2000 | 1900 | 2900 | 850 |
|
HE-APB6000
|
6000 | 2500 | 2200 | 3250 | 1000 |
|
HE-APB8000
|
8000 | 2500 | 2200 | 3250 | 1250 |
|
HE-APB10000
|
10000 | 3000 | 2200 | 3500 | 1550 |
|
HE-APB20000 |
20000 | 3500 | 3000 | 4200 | 2400 |
*buoy sizes and buoyancy can be customized according to customer design.
You can contact me at any time if you need it. Thank you for reading.
