大口径海洋沖合鋼製浮体係留ブイ
主要 な 特質
ブランド名:
Henger
モデル番号:
004
原産地:
中国
認定:
ISO 9001
最低注文数量:
1
価格:
500
供給能力:
50 PC/週
納期:
15~30 営業日
支払い条件:
L/C,D/A,D/P,T/T
標準パッケージ:
ヌードパッキング
製品概要
大直径の海上水中鋼浮遊船 製品説明 鉄製のアンカーボイは 港湾施設内の重要なアンカーインフラストラクチャであり, 様々なトンネージの船舶を信頼的に収容するために 精巧に設計されています.運用の枠組みは,本質的な便利性と適応性によって定義されています: 停泊地域に配備されると,停泊プロトコルを簡素化し,船舶交通量の変動に適応します. これらの浮遊船は 重要な海上作戦を 促進する役目を果たしています貨物軽量化のための安定したプラットフォームを提供し,停泊場所の制限を回避するために船間での転載を容易にし,船の現場のメンテナンスと修理作業を支援します.この能力により,貴重なドライドック資源を占めたり,...
製品カスタム属性
ハイライト
大直径の鋼製の停泊ボイ
,海上浮遊ボイ
,保証付きの鋼製の固定ボイ
製品名:
アンカーペンダントボイ
材料:
鋼,EVAの詰め物
サイズ:
カスタムサイズ
保証:
12ヶ月
色:
カスタムカラー
ロゴ サービス:
カスタマイズ
商標:
Henger
原産地:
中国
デザイン:
モジュール式設計
製品説明

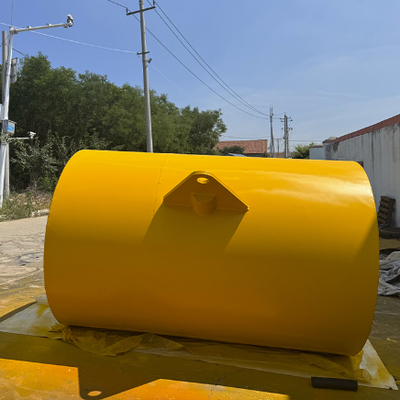

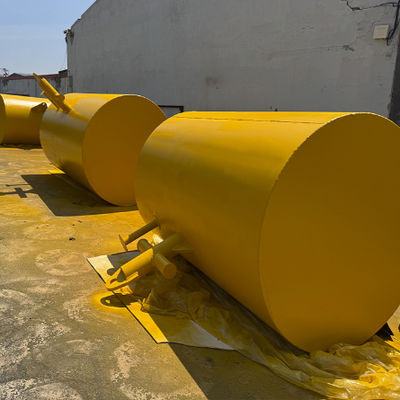

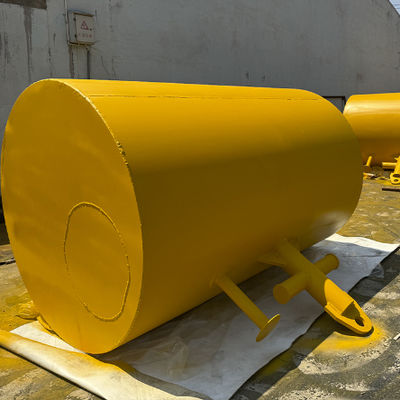

大直径の海上水中鋼浮遊船
鋼筋アンコールボイの技術パラメータ
| モデル | 網浮力 | D×H (m) | 船舶のトンネージに適している (t) |
| HESMB2 について0 | 3 | 2.0×174 | <2000 |
| HESMB2 について6 | 6 | 2.6×227 | <5000 |
| HESMB3 について6 | 19 | 3.6×214 | <10000 |
| HESMB 5 について0 | 28.5 | 50.0×34 | <12000 |
| HESMB 5 について5 | 31.2 | 5.5×30 | <100000 |
| HESMB 6 について0 | 34.2 | 60.0×32 | <150000 |
| HESMB8 について0 | 40.3 | 80.0×246 | <250万 |

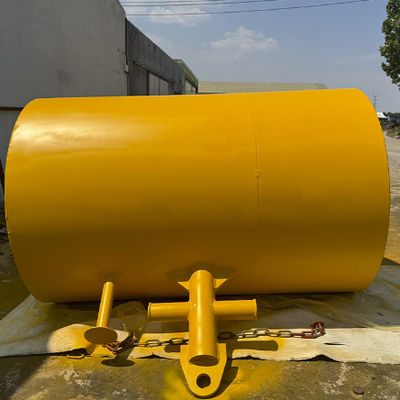

アンカー・ペンダント・ボイ
アンカーペンダントボイは,スーツケーススタイル,モジュール式,モジュール式でない,カスタム製,標準構成などのオプションを提供しています.すべてのユニットは,取り外す中央鋼材で装備されています特定の顧客要求に応えるように設計された,通常は,取り扱いの十字架/パッドの目配列または鎖ではなくアンカーワイヤーで使用するように設計された透き通ったハウスを備えています.
アンカーペンダントボイの技術パラメータ
|
モデル |
リザーブ浮気力 (kg) |
直径 (mm) |
浮遊船長 (mm) |
総長さ (mm) |
体重 (kg) |
|
HE-APB1000 |
1000 | 1350 | 1100 | 1900 | 300 |
|
HE-APB2000 |
2000 | 1500 | 1500 | 2600 | 500 |
|
HE-APB3000 |
3000 | 1850 | 1500 | 2600 | 600 |
|
HE-APB4000 |
4000 | 2000 | 1900 | 2900 | 850 |
|
HE-APB6000 |
6000 | 2500 | 2200 | 3250 | 1000 |
|
HE-APB8000 |
8000 | 2500 | 2200 | 3250 | 1250 |
|
HE-APB10000 |
10000 | 3000 | 2200 | 3500 | 1550 |
|
HE-APB20000 |
20000 | 3500 | 3000 | 4200 | 2400 |
*ボイのサイズと浮力度は,顧客の設計に応じてカスタマイズできます.
必要ならいつでも連絡してください.読んでくれてありがとう.
