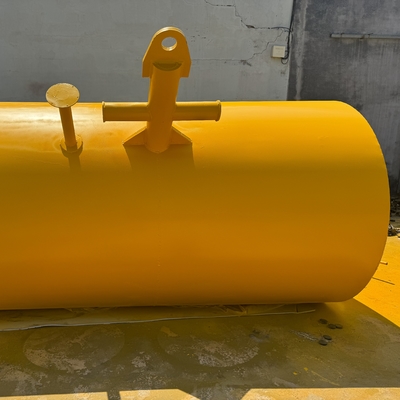

海洋沖合用途向け大口径鋼製浮き係留ブイ
主要 な 特質
ブランド名:
Henger
モデル番号:
004
原産地:
中国
認定:
ISO 9001
最低注文数量:
1
価格:
500
供給能力:
50個/週
納期:
15〜30営業日
支払い条件:
L/C、D/A、D/P、T/T
標準パッケージ:
ヌードパッキング
製品概要
大型直径海洋沖合鋼製浮遊係留ブイ 製品説明 鋼製係留ブイは、港湾施設における重要な係留インフラとして機能し、さまざまなトン数の船舶を確実に収容できるように細心の注意を払って設計されています。その運用フレームワークは、本質的な利便性と適応性によって定義されています。停泊区域に配備されると、係留プロトコルを合理化し、船舶交通量の変動に巧みに適応します。 これらのブイは、中核的な係留の役割を超えて、重要な海事活動を可能にします。貨物バージングのための安定したプラットフォームを提供し、バースの制限を回避するために船舶間の積み替えを容易にし、現場での船舶のメンテナンスと修理作業をサポートします。この機能...
製品カスタム属性
ハイライト
沖合用鋼製係留ブイ
,大口径浮きブイ
,海洋鋼製係留ブイ
製品名:
アンカーペンダントブイ
材料:
スチール、EVA充填
サイズ:
カスタマイズされたサイズ
保証:
12か月
色:
カスタマイズされた色
ロゴサービス:
カスタマイズ
商標:
ヘンガー
起源:
中国
デザイン:
モジュラー設計
製品説明
大型直径海洋沖合鋼製浮遊係留ブイ
鋼製係留ブイ技術パラメータ
| モデル | 正味浮力 | D×H (m) | 適合船舶トン数 (t) |
| HESMB 2.0 | 3 | 2.0×1.74 | <2000 |
| HESMB 2.6 | 6 | 2.6×2.27 | <5000 |
| HESMB 3.6 | 19 | 3.6×2.14 | <10000 |
| HESMB 5.0 | 28.5 | 5.0×3.4 | <12000 |
| HESMB 5.5 | 31.2 | 5.5×3.0 | <100000 |
| HESMB 6.0 | 34.2 | 6.0×3.2 | <150000 |
| HESMB 8.0 | 40.3 | 8.0×2.46 | <250000 |
アンカーペンダントブイ
アンカーペンダントブイは、スーツケース型、モジュール型、非モジュール型、カスタムメイド、標準構成など、幅広いサイズで提供されています。すべてのユニットには、特定の顧客の要件を満たすように調整された取り外し可能な中央鋼構造が装備されており、通常はハンドリング十字/パッドアイ配置またはチェーンの代わりにアンカーワイヤーで使用するように設計されたスルーホーゼルを備えています。
アンカーペンダントブイ技術パラメータ
|
モデル
|
予備浮力 (kg) |
直径 (mm) |
フロート長 (mm) |
全長 (mm) |
重量 (kg) |
|
HE-APB1000
|
1000 | 1350 | 1100 | 1900 | 300 |
|
HE-APB2000
|
2000 | 1500 | 1500 | 2600 | 500 |
|
HE-APB3000
|
3000 | 1850 | 1500 | 2600 | 600 |
|
HE-APB4000
|
4000 | 2000 | 1900 | 2900 | 850 |
|
HE-APB6000
|
6000 | 2500 | 2200 | 3250 | 1000 |
|
HE-APB8000
|
8000 | 2500 | 2200 | 3250 | 1250 |
|
HE-APB10000
|
10000 | 3000 | 2200 | 3500 | 1550 |
|
HE-APB20000 |
20000 | 3500 | 3000 | 4200 | 2400 |
*ブイのサイズと浮力は、顧客の設計に合わせてカスタマイズできます。
ご要望がございましたら、いつでもご連絡ください。お読みいただきありがとうございます。
