Shipping Launching Inflatable Rubber Airbag For Vessel

主要 な 特質
ブランド名: Henger
モデル番号: HE0015
原産地: 中国
認定: ISO1735,CCS, ABS, LRS, BV, GL, DNV, NK
最低注文数量: 1個
納期: 7~15営業日
支払い条件: L/C、D/A、D/P、ウェスタンユニオン、T/T、マネーグラム
標準パッケージ: 正常なパッキング、裸Packing/Asの条件

製品概要

船舶の進水、引き揚げ、吊り上げ用の頑丈な海洋用ゴム製エアバッグ。カスタム サイズ (直径 0.8 ~ 2.5 M)、高圧容量、防爆設計。 ISO 認定済みで、10 ~ 15 年の耐用年数があります。専門的なアフターサポートが含まれています。

製品カスタム属性

ハイライト

inflatable rubber airbag for vessel

,

ship launching airbags with warranty

,

vessel launching inflatable rubber airbag

材料:
天然ゴム、天然ゴムとカーボンの混合ゴム
直径範囲:
0.8-2.5M
有効長:
10〜24m
コードの層:
4-12レイヤー
使用圧力:
0.06~0.24MPa
試験圧力:
0.07~0.26MPa
製品説明
Shipping Launching Inflatable Rubber Airbag For Vessel
Product Overview

Marine airbags, also known as roller bags, launching air balloons, inflatable marine airbags, air lift bags, and salvage bags, are specialized marine rubber air bags designed for launching marine vessels, ship landing or haul-outs. These versatile products are widely used in loading, floating, lifting, moving sunken ships, and salvaging stranded boats.

Constructed from heavy-duty synthetic-tire-cord layers with rubber layers in a long cylindrical balloon shape, "HENGER" airbag structure consists of outer rubber + synthetic cord reinforced rubber layers. The characteristic shape features a central cylindrical body with tapered ends on both sides. Available cord layers: 4, 5, 6, 7, 8, 9, 10, 11, 12 layers.

D1.8m x L20m Shipping Launching Balloon Inflatable Rubber Airbag for vessel application
Technical Specifications
Diameter (m) 1.0 1.2 1.5 1.8 2.0
Medium Pressure (4-5)
Test Pressure 0.14-0.16 0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09
Working Pressure 0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09 0.06-0.08
High Pressure (6-8)
Test Pressure 0.22-0.26 0.20-0.24 0.15-0.20 0.13-0.16 0.12-0.15
Working Pressure 0.20-0.24 0.17-0.22 0.13-0.18 0.11-0.14 0.10-0.13
Standard Sizes

Customized sizes are also available upon request.

Diameter (m) Effective Length (m) Layer Pressure (MPa)
1.0105~60.07~0.10
1.0125~60.07~0.10
1.0155~60.07~0.10
1.2105~60.08~0.12
1.2125~60.08~0.12
1.2155~60.08~0.12
1.5125~80.08~0.16
1.5155~80.08~0.16
1.5185~80.08~0.16
1.5204~80.08~0.16
1.5245~80.08~0.16
1.8125~80.08~0.15
1.8155~80.08~0.15
1.8185~80.08~0.15
1.8205~80.08~0.15
1.8245~80.08~0.15
2.0186~100.08~0.18
2.0206~100.08~0.18
2.0246~100.08~0.18
2.5187~100.07~0.13
2.5207~100.07~0.13
2.5247~100.07~0.13
Product Advantages
  • High Bearing Capacity
  • High Kneading-resistance Capability
  • New Anti-explosion Design of End Part
  • High strength galvanized anti-release structure
  • Optimizing Structure Configuration
  • Good Abrasion-resistance Performance and High Ageing Resistance
  • Higher Flexibility and Shock Absorption Capability
Technical diagram showing shipping launching airbag structure and features
Our Manufacturing Facility

Our factory maintains high productivity and large inventory capabilities. All production equipment and testing procedures strictly adhere to international standards. We welcome customer visits and accept third-party testing to ensure quality assurance.

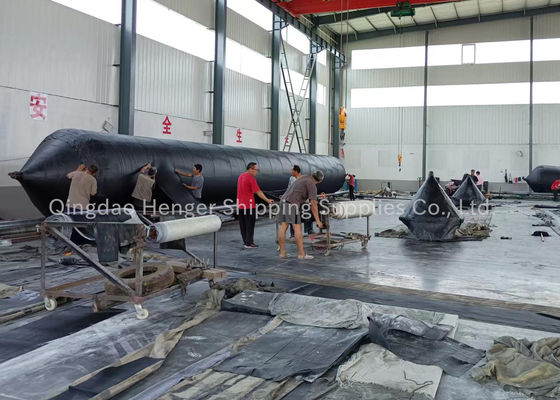

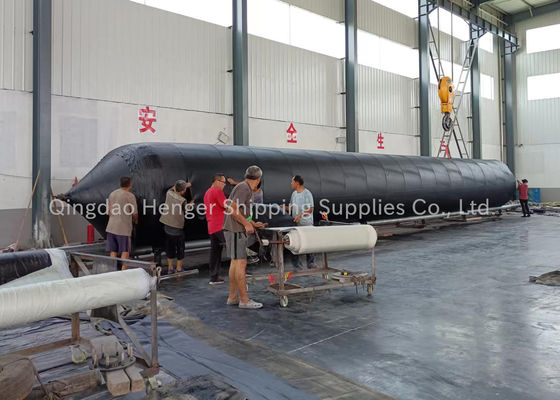

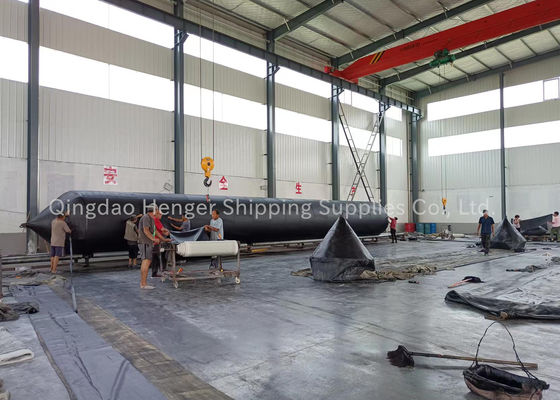

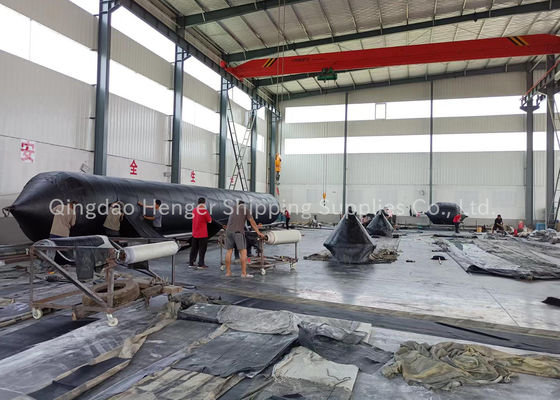

HENGER manufacturing facility showing production of marine airbags
Our Services

Why customers choose us:

  • Value for Money - Best pricing based on excellent quality
  • Unrivalled Expertise - First-rate product quality and service
  • Extended Product Lifespan - 10-15 years service life with quality warranty
  • Professional After-sales Service - 24-hour response for product inquiries
  • Comprehensive Support - Free repair tool set provided with purchase
HENGER company overview and service capabilities
Company Profile

Qingdao Henger Shipping Supplies Co., Ltd, located in the beautiful coastal city of Qingdao, is a high-tech enterprise specializing in manufacturing marine products including marine rubber fenders, marine airbags, navigation marks, and marine buoys. The company integrates manufacturing, research and innovation, and technical services.

All products are ISO 9001-2008 certified and hold IACS quality authentication from leading classification societies including CCS, BV, GL, ABS, and LG. With strong technological foundations, advanced manufacturing techniques, complete facilities, and well-equipped testing equipment, Qingdao Henger Marine Supplies is committed to becoming a top-ranking international marine products manufacturer, providing high-quality products and perfect service while ensuring global marine safety through mutually beneficial cooperation.
