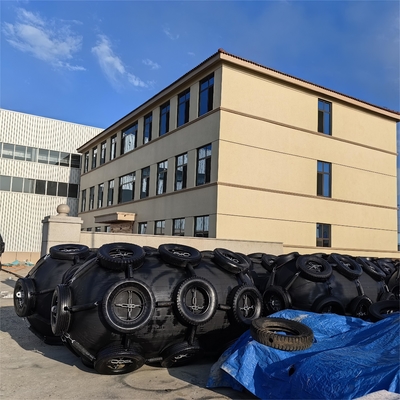

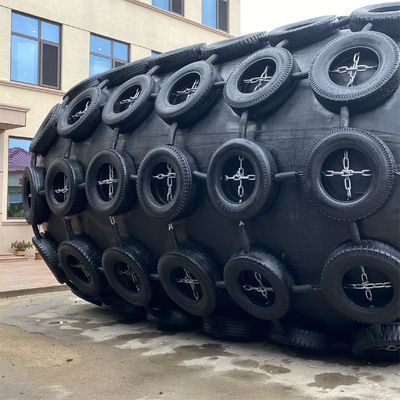

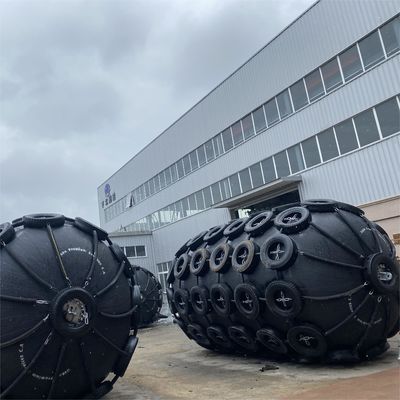

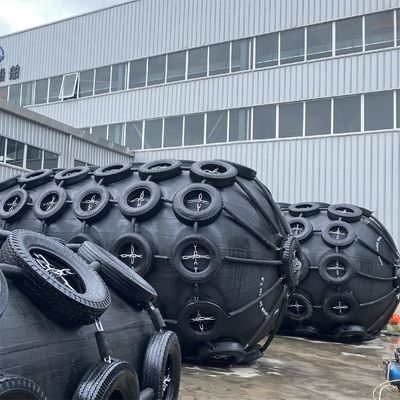

ISO17357 Inflatable Rubber Fender 50kpa-80kpa for Ship Docking

製品

ISO17357 Inflatable Rubber Fender 50kpa-80kpa for Ship Docking

MOQ:	1
価格:	$346
標準パッケージ:	パレット
配達期間:	5-8勤務日
決済方法:	L/C、D/A、D/P、T/T、Western Union、MoneyGram
供給能力:	5/日

詳細情報

製品説明

詳細情報

起源の場所

中国

ブランド名

Henger

証明

ABS, CCS, BV, LR, DNV

モデル番号

PRF

文書

Pneumatic Rubber Fender Cat...er.pdf

材料:

ゴム

サイズ:

カスタム製造

適用する:

船から船へ

貯蔵寿命:

24か月

プレッシャー:

50KPa及び80KPa

構造:

インフレータブル

ハイライト:

ISO17357 inflatable rubber fender

ship docking rubber fender 50kpa

pneumatic fender with high pressure

製品説明

ISO17357 Pneumatic Rubber Fender Net Type Yokohama Rubber Fender Inflatable

Qingdao Henger Shipping Supplies Co., Ltd

Nestled in the coastal city of Qingdao, Qingdao Henger Shipping Supplies Co., Ltd is a leading high-tech enterprise specializing in premium marine products including marine rubber fenders, marine airbags, navigation marks, and marine buoys.

Our commitment to quality is underscored by ISO 9001:2008 certification and IACS approvals from renowned classification societies including CCS, BV, GL, ABS, and LR.

With strong technology base, advanced manufacturing techniques, and complete facilities, we are committed to providing high quality marine products and services worldwide.

Inflatable Rubber Fender Introduction

The "Yokohama Type Inflatable Rubber Fender" was developed in 1958. These fenders have evolved alongside ship technology to accommodate progressively larger vessels including VLCCs, ULCCs, large gas carriers, and bulk carriers.

Floating Inflatable Fenders are used worldwide for ship-to-ship (STS) transfer operations, terminals, and various marine applications. Millions of fenders have been supplied globally for both ship-to-ship and ship-to-dock operations.

Inflatable Rubber Fender Technical Parameters

Fender Size	Compression Amount (60%)	Noumenon Weight (Kg)	Weight with Protective Jacket (Kg)
D (mm) \| L (mm)	Reaction (KN) \| Energy Absorption (KNm)
500 \| 1000	64 \| 6	23	35

* There are inflatable fenders of 0.05Mpa & 0.08Mpa internal pressure available. Contact our service consultant for details and competitive prices.

* Fender size and accessories can be customized according to customer requirements.

Henger Inflatable Rubber Fender Advantages

4.1 Safety and Reliability

Constructed with multiple layers of strong tire-cord, our fenders are resistant to pressure and cutting. Large-size fenders include safety valves for accidental over-pressure situations.

4.2 No Deterioration or Variation in Performance

Utilizing the compressive elasticity of air, our fenders show no performance deterioration due to fatigue.

4.3 Advantages at Inclined Berthing

Energy absorption remains consistent at inclined compression up to 15 degrees.

4.4 Most Cost Competitive System

Uniform surface pressure makes our fenders ideal for LNG-ship terminals and other sensitive applications.

4.5 Soft Reaction Force

Our fenders provide gentle protection for ships and mooring facilities, even under excess load conditions.

4.6 Lower Mooring Forces

The gradual increase in reaction force makes our fenders particularly effective in rough weather conditions.

Inflatable Rubber Fender Applications

Large crude oil carriers (VLCC)
Container vessels
Offshore sea task platforms
Large shipyards and docks
Large ships and cruise ships
Army harbor docks
Large bridge piers
