船の停泊のための横浜円柱空気のゴム製 フェンダー

主要 な 特質
ブランド名: Henger
原産地: 中国
認定: Iso 9001、BV、ccs
最低注文数量: 1pcs
供給能力: 50pcs週
支払い条件: L/C、D/A、D/P、T/T、ウェスタン・ユニオン、MoneyGram
標準パッケージ: 露出した/パレット

製品概要

船の停泊のための横浜円柱空気のゴム製 フェンダー 私達のフェンダーの主要な部分は外のゴム、コードの層、内部のゴムおよびフランジの入り口で構成される、従って高い硬度、高い靭性および長い生命の特徴があり、紫外放射および海水の腐食に抵抗できる。私達は爆発保護の良質のフランジの入り口を使用する。私達の先端技術および洗練された生産はプロダクトの質および顧客の興味を保障する。 Hengerの膨脹可能なゴム製 フェンダーの利点 1. 安全および信頼性 Hengerの膨脹可能なゴム製 フェンダーは強いタイヤ コードの複数の層の組み立てられ、圧力をかけるためにこうして抵抗力があるおよび切断。このフェンダーの設計...

製品カスタム属性

ハイライト

膨脹可能なゴム製 フェンダーの係留

,

反衝突のゴム製 フェンダー

,

反衝突の係留ゴム製 フェンダー

製品名:
空気のゴム製 フェンダー/海洋のフェンダー/横浜フェンダー
材料:
天然ゴム
指定:
Dia 0.5m-4.5m、L 0.7m-9m/Customized
証明書:
CCS/BV/LR/ISO17357/DNV/SGS
保存性:
24ヶ月
働き圧力:
50kPa/80kPa
適用:
ドック、艦対艦船
耐用年数:
10年
生産時間:
5-10日
付属品:
タイヤシース/スイベル/シャックル/チェーン
色:
黒/Blue/Asの条件
製品説明

船の停泊のための横浜円柱空気のゴム製 フェンダー

私達のフェンダーの主要な部分は外のゴム、コードの層、内部のゴムおよびフランジの入り口で構成される、従って高い硬度、高い靭性および長い生命の特徴があり、紫外放射および海水の腐食に抵抗できる。私達は爆発保護の良質のフランジの入り口を使用する。私達の先端技術および洗練された生産はプロダクトの質および顧客の興味を保障する。

Hengerの膨脹可能なゴム製 フェンダーの利点

1. 安全および信頼性

Hengerの膨脹可能なゴム製 フェンダーは強いタイヤ コードの複数の層の組み立てられ、圧力をかけるためにこうして抵抗力があるおよび切断。このフェンダーの設計で採用される安全率は受け入れられた理論に基づき、広範な実験によって証明された。

大型のフェンダーは安全弁が偶然の重圧の場合に中の空気を解放するために装備されている。

2. 性能の悪化か変化無し

従ってHengerの膨脹可能なゴム製 フェンダーは空気の圧縮伸縮性を、利用する

疲れること当然の性能の悪化は不在である。

3. 傾向がある停泊の利点

Hengerの膨脹可能なゴム製 フェンダー、エネルギー吸収は傾向がある圧縮で15度まで減らさない。

次は製品仕様書および詳しい変数である:

空気の50のフェンダーのサイズおよび性能要件

わずかなサイズの直径Xの長さ

mm

最初の内部圧力

kPa

保証されたエネルギー吸収(GEA) GEAの偏向(R)の反力 GEAの偏向(p)の外皮圧力(内部圧力)
偏向60±5% kJの最小値 Tolerance±の10%のkN

基準値

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000年 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000年x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019年 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154

空気の80のフェンダーのサイズおよび性能要件

わずかなサイズの直径Xの長さ

mm

最初の内部圧力

kPa

保証されたエネルギー吸収(GEA) GEAの偏向(r)の反力 GEAの偏向(p)の外皮圧力(内部圧力)
偏向60±5% kJの最小値 Tolerance±10%のkN

基準値

kPa

500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000年 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000年x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202

チンタオHengerの出荷の供給Co.、株式会社

赤いタイルおよび緑の木が付いているチンタオ、美しい沿岸都市、青い海および明確な空のチンタオHengerの出荷の供給Co.、株式会社のうそは製造業、研究および革新の海洋のゴム製 フェンダー、海洋のエアバッグ、運行印および海洋のブイのような海産物の、製造を専門にする技術援助と統合されるハイテクな企業である。すべてのプロダクトはCCS、BV、GL、ABS、LG、等からISO 9001-2008の証明書およびIACSの質の証明を得る。

強い技術基盤によって、高度の製造技術は、完全な製作所および設備が整っている装置、チンタオHengerの海洋の供給Co.をcheckoutすべての顧客に良質プロダクトおよび完全なサービスを提供する最高位の国際的な競争の海産物の製造業者にそれ自身を造るために、株式会社は捧げられ世界中友人で相互に有利な協同によって全体的な海洋安全を保障する責任を背負う。

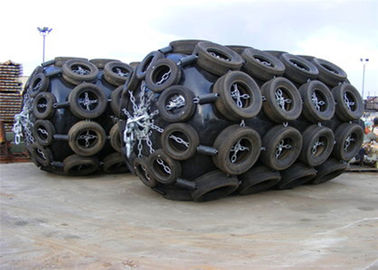

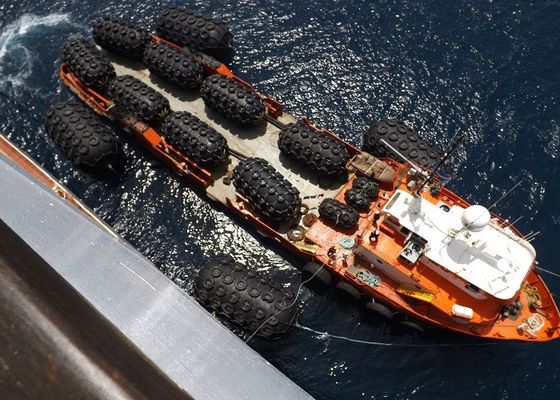

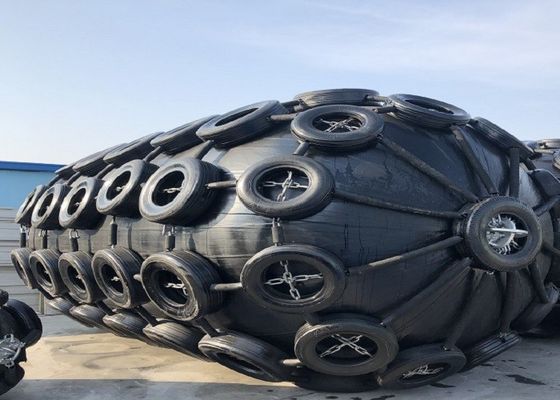

船の停泊のための横浜円柱空気のゴム製 フェンダー 0船の停泊のための横浜円柱空気のゴム製 フェンダー 1船の停泊のための横浜円柱空気のゴム製 フェンダー 2

「横浜タイプ膨脹可能なゴム製 フェンダー」は1958年に開発された。そのような浮遊膨脹可能なゴム製 フェンダーの開発の進歩は船の技術の進歩そして開発と密接に関連し、VLCC、ULCC、大きいガスのキャリア、ばら積み貨物船および浮遊構造のような漸進的により大きい石油タンカーに絶えず対処しなければならない。

浮遊膨脹可能なフェンダーは艦対艦の(STS)転送操作、ターミナルといろいろな種類の船のために世界的に使用される。今日までの作成以来、何百万よりもっとのフェンダー私達の貴重な顧客を機能する艦対艦および船にドック(STD)操作のために世界的に供給された。これらのフェンダーは停泊し、繋ぎ止める船の安全な操作の重大な役割を担う。

船の停泊のための横浜円柱空気のゴム製 フェンダー 3

サービスおよび交通機関:


Hengerのプロダクト保証期間は24か月であり、一般の製造者はまた信頼私達であり、顧客が私達の工場プロダクトで持っているあまり長い時間に達することができない。


売り上げ後のサービス私達は私達がそこに常にいる質問がある限り、1日24時間オンラインである、あなたの質問に答え、テクニカル サポートを与える専門スタッフがある。


交通機関私達は顧客の条件に従ってデフレーションなしでデフレーション パレット交通機関および全体のフェンダーの交通機関を取ってもいい。私達は顧客の要求を常に最初に置いた。

読むことをありがとう。必要性および興味があれば、私に連絡できる。
