Custom Manufacturing Foam Filled Fender with ISO17357 Standard and 12 Months Shelf Life
主要 な 特質
ブランド名:
Henger
モデル番号:
fff
原産地:
中国
認定:
ABS, CCS, BV, LR, DNV
最低注文数量:
1
価格:
$385
供給能力:
500個/月
納期:
5-8勤務日
支払い条件:
L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
標準パッケージ:
パレット
製品概要
Foam Filled Fender with Custom Diameter - ISO17357 Standard 0.5 to 4.8m Premium Foam Filled Fender - Customized ISO17357 Diameter Options Available. High-Quality Foam Filled Fender Customized to ISO17357 Standards. Product Specifications Attribute Value Material EVA Size Custom Manufacturing ...
製品カスタム属性
ハイライト
Custom Manufacturing Foam Filled Fender
,ISO17357 Standard Foam Filled Fender
,12 Months Shelf Life Foam Filled Fender
材料:
エヴァ
サイズ:
カスタム製造
応用:
港、沖合、sts、std
貯蔵寿命:
12ヶ月
長さ:
1 m〜12 m
直径:
0.5 m〜4.8 m
製品説明
Foam Filled Fender with Custom Diameter - ISO17357 Standard 0.5 to 4.8m
Premium Foam Filled Fender - Customized ISO17357 Diameter Options Available. High-Quality Foam Filled Fender Customized to ISO17357 Standards.
Product Specifications
| Attribute | Value |
|---|---|
| Material | EVA |
| Size | Custom Manufacturing |
| Application | Harbour, Offshore, STS and STD |
| Shelf Life | 12 Months |
| Length | 1 M~12 M |
| Diameter | 0.5 M~4.8 M |
Product Overview

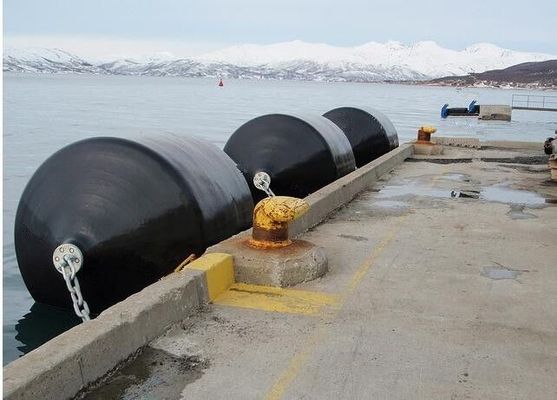

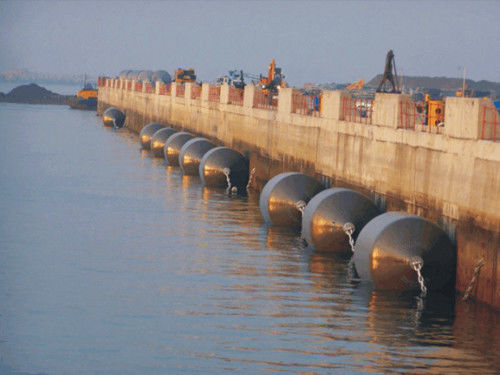

Versatile Foam Filled Fender with customized dimensions manufactured to ISO 17357 Standard. Also known as EVA solid fenders, our foam filled fenders use lightweight, high-elasticity foam as cushioning medium, making them ideal for harbour, offshore, STS and STD operations.
Manufactured from environmentally friendly, high-elasticity polymeric materials, these fenders offer exceptional performance with high strength, elasticity, adhesion, anti-leakage, and aging resistance for extended service life and economic value.
Technical Parameters
| Model | D (mm) | L (mm) | Compression 60% Counter-force (KN) | Energy Absorption (KJ) |
|---|---|---|---|---|
| Ø 500×1000L | 500 | 1000 | 71 | 8 |
| Ø 600×1000L | 600 | 1000 | 86 | 12 |
| Ø 700×1500L | 700 | 1500 | 161 | 27 |
| Ø 1000×1500L | 1000 | 1500 | 205 | 49 |
| Ø 1000×2000L | 1000 | 2000 | 274 | 64 |
| Ø 1200×2000L | 1200 | 2000 | 337 | 93 |
| Ø 1200×2400L | 1200 | 2400 | 390 | 110 |
| Ø 1350×2500L | 1350 | 2500 | 463 | 145 |
| Ø 1500×3000L | 1500 | 3000 | 624 | 216 |
| Ø 1700×3000L | 1700 | 3000 | 696 | 273 |
| Ø 2000×3500L | 2000 | 3500 | 990 | 456 |
| Ø 2000×4000L | 2000 | 4000 | 1110 | 505 |
| Ø 2200×4500L | 2200 | 4500 | 1396 | 679 |
| Ø 2500×4000L | 2500 | 4000 | 1386 | 781 |
| Ø 2500×5000L | 2500 | 5000 | 1750 | 985 |
| Ø 3000×5000L | 3000 | 5000 | 2050 | 1410 |
| Ø 3000×6000L | 3000 | 6000 | 2460 | 1695 |
| Ø 3300×6500L | 3300 | 6500 | 2950 | 2245 |
| Ø 4500×9000L | 4500 | 9000 | 19650 | 7860 |
About Qingdao Henger Shipping Supplies Co., Ltd
Located in Qingdao, a coastal city renowned for its maritime heritage, Qingdao Henger Shipping Supplies Co., Ltd is a leading high-tech enterprise specializing in premium marine products including marine rubber fenders, marine airbags, navigation marks, and marine buoys.
Our ISO 9001:2008 certification and IACS approvals from classification societies (CCS, BV, GL, ABS, and LR) demonstrate our commitment to quality, durability, and safety in all our marine solutions.
With advanced manufacturing techniques, complete facilities, and rigorous quality control, we are dedicated to becoming a top international marine products manufacturer while ensuring global marine safety through cooperation with partners worldwide.
Frequently Asked Questions
What is the minimum order quantity?
We primarily handle wholesale orders but can accommodate single unit purchases when required.
We primarily handle wholesale orders but can accommodate single unit purchases when required.
What payment methods do you accept?
We accept T/T, Western Union, Money Gram and others. Payment terms are 30% deposit in advance with 70% balance upon delivery.
We accept T/T, Western Union, Money Gram and others. Payment terms are 30% deposit in advance with 70% balance upon delivery.
What are your packing and shipping options?
Packing options include neutral carton, wooden case or others depending on product and quantity. Shipping options include air or sea freight (please specify destination port for sea shipping).
Packing options include neutral carton, wooden case or others depending on product and quantity. Shipping options include air or sea freight (please specify destination port for sea shipping).
Do you offer discounts?
We strive to provide the best possible pricing while maintaining excellent service quality.
We strive to provide the best possible pricing while maintaining excellent service quality.
After Sales Service
Quality is our cornerstone and service is our soul. We provide comprehensive technical support and meticulous after-sales service to ensure customer satisfaction.
- 24-hour online technical consultation and support
- 24-month warranty period (excluding artificial damage) with free repairs during warranty
