| MOQ: | 1 |
| 価格: | $220 |
| 標準パッケージ: | パレット |
| 配達期間: | 5～8営業日 |
| 決済方法: | L/C,D/A,D/P,T/T,MoneyGram,ウェスタンユニオン |
| 供給能力: | 500枚/月 |
1.Qingdao Henger Shipping Supplies Co., Ltd
Nestled in the picturesque coastal city of Qingdao—renowned for its red-tiled roofs, lush greenery, azure seas, and clear skies—Qingdao Henger Shipping Supplies Co., Ltd stands as a leading high-tech enterprise dedicated to innovation and excellence in the marine industry.
Specializing in the manufacturing of premium marine products, including marine rubber fenders, marine airbags, navigation marks, and marine buoys, we integrate cutting-edge research, advanced manufacturing, and comprehensive technical services to deliver superior solutions for global maritime needs.
Our commitment to quality is underscored by ISO 9001:2008 certification and prestigious IACS approvals from renowned classification societies such as CCS, BV, GL, ABS, and LR. With a relentless focus on durability, performance, and safety, we empower the marine sector with reliable, high-performance products that meet the highest international standards.
At Henger, we sail ahead with innovation, quality, and trust—anchoring the future of marine technology.
With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.

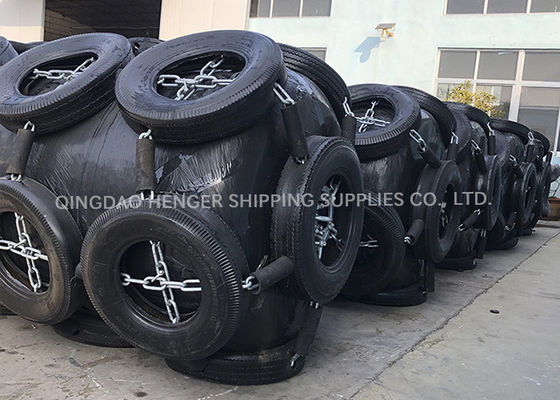

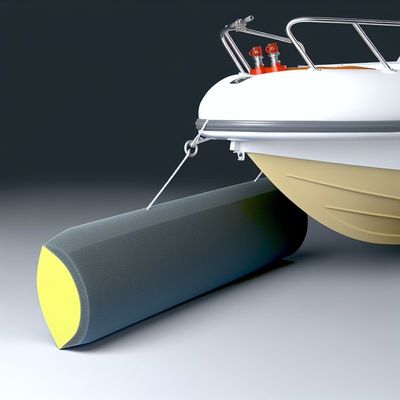

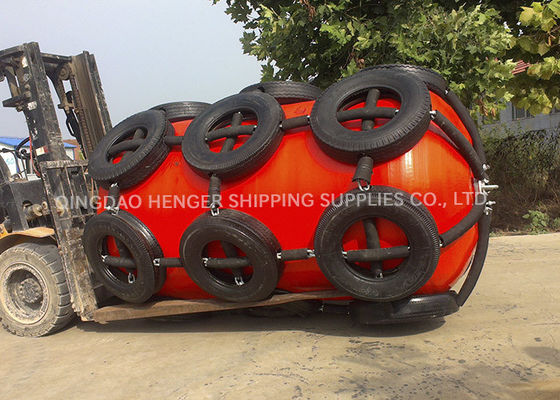

2. Foam filled fender Introduction
Foam filled fender,also called EVA solid fender, is a new type fender using light weight high elasticity foam as cushion medium, widely applied to harbour, offshore,STS and STD operation.Henger Foam Filled Solid Fender is made of environmental protection material and high elasticity polymeric material. long service life and high economic value of this product is achieved by the high quality material with performance of high strength, high elasticity, high adhesion, anti-leakage,and aging resistance.
3. Foam filled Fender Technical Parameter
| Model | D (mm) |
L (mm) |
Compression 60% | |
| Counter-force(KN) | Energy Absorption (KJ) |
|||
| Ø 500×1000L | 500 | 1000 | 71 | 8 |
| Ø 600×1000L | 600 | 1000 | 86 | 12 |
|
Ø 700×1500L |
700 | 1500 | 161 | 27 |
| Ø 1000×1500L | 1000 | 1500 | 205 | 49 |
| Ø 1000×2000L | 1000 | 2000 | 274 | 64 |
| Ø 1200×2000L | 1200 | 2000 | 337 | 93 |
| Ø 1200×2400L | 1200 | 2400 | 390 | 110 |
| Ø 1350×2500L | 1350 | 2500 | 463 | 145 |
| Ø 1500×3000L | 1500 | 3000 | 624 | 216 |
| Ø 1700×3000L | 1700 | 3000 | 696 | 273 |
| Ø 2000×3500L | 2000 | 3500 | 990 | 456 |
| Ø 2000×4000L | 2000 | 4000 | 1110 | 505 |
| Ø 2200×4500L | 2200 | 4500 | 1396 | 679 |
| Ø 2500×4000L | 2500 | 4000 | 1386 | 781 |
| Ø 2500×5000L | 2500 | 5000 | 1750 | 985 |
| Ø 3000×5000L | 3000 | 5000 | 2050 | 1410 |
| Ø 3000×6000L | 3000 | 6000 | 2460 | 1695 |
| Ø 3300×6500L | 3300 | 6500 | 2950 | 2245 |
| Ø 4500×9000L | 4500 | 9000 | 19650 | 7860 |
4.FAQ
