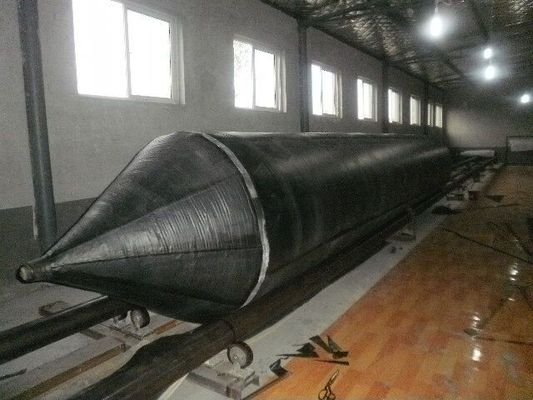

使用された海洋のゴム製 エアバッグを動かす膨脹可能なゴム製気球を持ち上げるケーソン

主要 な 特質
ブランド名: Henger
モデル番号: 016
原産地: 中国
認定: Iso 9001、BV、ccs
最低注文数量: 1pcs
供給能力: 50pcs週
納期: 5days
支払い条件: L/C、D/A、D/P、T/T、ウェスタン・ユニオン、MoneyGram
標準パッケージ: paller

製品概要

販売のための使用された海洋のエアバッグを動かす膨脹可能な、ゴム製気球を持ち上げるケーソン製品紹介 具体的なポンツーンはまた天然ゴムおよびゴム製浸されたナイロン コードの生地からゴム製心棒を成っている呼んだ。 それは世界のケニヤ、ザンビア、タンザニア、エチオピア等で作る具体的な排水渠のために広く利用されている。 私達の海洋のゴム製 エアバッグのある正常なサイズは、カスタマイズされたサイズまた利用できる 直径(m) 有効な長さ(m) 層 圧力(MPa) 1.0 10 5~6 0.07~0.10 1.0 12 5~6 0.07~0.10 1.0 15 5~6 0.07~0.10 1.2 10 5~6 ...

製品カスタム属性

ハイライト

膨脹可能なゴム製気球を持ち上げるケーソン

,

移動膨脹可能なゴム製気球

,

海洋のゴム製 エアバッグを持ち上げるケーソン

名前:
船の進水のための海洋のエアバッグ
直径:
0.8--2.5M
使用法:
進水する船船のゴム製海洋海難救助の上昇袋
証明:
CCS,ABS,BV,LR
層:
5/ 6 7/8/9/10の層
働き圧力:
0.08Mpa
保証:
12か月
タイプ:
Pnematic
製品説明

販売のための使用された海洋のエアバッグを動かす膨脹可能な、ゴム製気球を持ち上げるケーソン

製品紹介

具体的なポンツーンはまた天然ゴムおよびゴム製浸されたナイロン コードの生地からゴム製心棒を成っている呼んだ。

それは世界のケニヤ、ザンビア、タンザニア、エチオピア等で作る具体的な排水渠のために広く利用されている。

使用された海洋のゴム製 エアバッグを動かす膨脹可能なゴム製気球を持ち上げるケーソン 0

私達の海洋のゴム製 エアバッグのある正常なサイズは、カスタマイズされたサイズまた利用できる

直径(m) 有効な長さ(m) 圧力(MPa)
1.0 10 5~6 0.07~0.10
1.0 12 5~6 0.07~0.10
1.0 15 5~6 0.07~0.10
1.2 10 5~6 0.08~0.12
1.2 12 5~6 0.08~0.12
1.2 15 5~6 0.08~0.12
1.5 12 5~8 0.08~0.16
1.5 15 5~8 0.08~0.16
1.5 18 5~8 0.08~0.16
1.5 20 4~8 0.08~0.16
1.5 24 5~8 0.08~0.16
1.8 12 5~8 0.08~0.15
1.8 15 5~8 0.08~0.15
1.8 18 5~8 0.08~0.15
1.8 20 5~8 0.08~0.15
1.8 24 5~8 0.08~0.15
2.0 18 6~10 0.08~0.18
2.0 20 6~10 0.08~0.18
2.0 24 6~10 0.08~0.18
2.5 18 7~10 0.07~0.13
2.5 20 7~10 0.07~0.13
2.5 24 7~10 0.07~0.13

指定

直径 働き圧力 働き高さ 単位長ごとの軸受け容量
KN/m Ton/m
D=1.0m 0.20Mpa 0.6m 125.76 12.82
0.5m 157.16 16.02
D=1.2m 0.17Mpa 0.7m 133.61 13.62
0.6m 160.3 16.34
D=1.5m 0.13Mpa 0.9m 112.63 12.5
0.8m 143.03 14.58
0.7m 163.43 16.66
D=1.8m 0.11Mpa 1.1m 120.96 12.33
1.0m 138.22 14.09
0.9m 155.59 15.86
0.8m 172.85 17.62
0.7m 190.22 19.39
D=2.0m 0.10Mpa 1.2m 125.76 12.82
1.1m 141.46 14.42
1.0m 157.16 16.02
0.9m 172.85 17.62
0.8m 188.64 19.23

プロダクト利点

  • 端の部品の新しいAnti-explosion設計

金属部分およびゴム製部分の共同区域の空気漏出の可能性はまたエアバッグの働く圧力として加えられる増加している。高い働く圧力の下の時の間使用の後で、エアバッグは破烈し、金属部分を労働者を傷つける。

Hengerはエアバッグの端の部品の新しいanti-explosion設計を発明し、ゴム製身体部分と端の金属部分間の接着強さそして空気堅さを高める。Hengerのエアバッグは潜在的な安全上の問題なしでより高い働く圧力の下で非常によく働いている。

  • 高い忍耐容量

膨脹可能なゴム製 エアバッグの主要な技術的要求事項はCB/T 3795で調整される--中国State Shipbuilding Corporation著出版される1996。

Hengerは新しいゴム製方式および2倍エアバッグの忍耐容量をCB/T 3795より多く改善する高力高められた総合的タイヤ コードの層を採用する、--1996標準。

Hengerの海洋のエアバッグの総合的タイヤ コードの層は浸されたナイロン6 1400dtex/3-V2タイヤ コードを採用する。

エアバッグの強さ及び耐久性は20%を、友好的な競争相手によって広く利用されているコードをポリエステル タイヤと比較されて改善する。

使用された海洋のゴム製 エアバッグを動かす膨脹可能なゴム製気球を持ち上げるケーソン 1

使用された海洋のゴム製 エアバッグを動かす膨脹可能なゴム製気球を持ち上げるケーソン 2

2. 海洋のゴム製 エアバッグの塗布

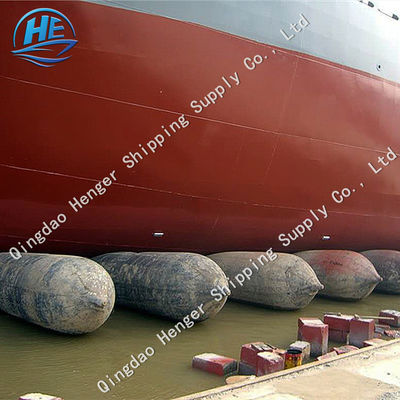

  • 進水する及び改善する船

中国の開発20年以上によって、海洋のゴム製 エアバッグは進水する及び改善する船のための最も信頼でき、最も安定した技術であると証明される。それは平らな板のトンから巨大な船の10,000トンに適当である。その間、海洋のゴム製 エアバッグはまた外国の造船所、造船所、港/港の建設会社によって広く認められる。海洋のゴム製 エアバッグとの技術を進水させる及び改善する船はまた市場で非常に、アメリカのような、ヨーロッパ、東南アジア促進される。

  • 重量挙げ及び移動

海洋のゴムはプロジェクトを組み立てる港で持ち上がり、進水し、動き、そして運ぶケーソンに適用できるそらす

  • 浮力の援助及び海難救助

海洋のゴム製 エアバッグに浮力力およびload-bearing容量があるので、くぼんだ容器の海難救助および浮力の援助でまた広く利用されている。

使用された海洋のゴム製 エアバッグを動かす膨脹可能なゴム製気球を持ち上げるケーソン 3

エアバッグFAQ

海洋のゴム製 エアバッグについてのFAQ

1."は進水し、つなぐ船のために海洋のゴム製 エアバッグを使用できる私か」。
答え:はい、私達のゴム製 エアバッグは進水する船のために広く利用されて持ち上がる移動および海難救助etc.nowをつなぐ。
slipwayと比較されるあなたの海洋のゴム製 エアバッグの利点はか」。である何2."
答え:

1) 私達の海洋のゴム製 エアバッグはslipwayより大いに安い、しかしまた再使用可能、お金および労働を救うことができる
2)私達の海洋のゴム製 エアバッグは移動可能である、それはより適用範囲が広い時間を節約、
3)私達のゴム製 エアバッグはslipwayが船の底へ、そこに害ではないより大いに柔らかい。
